Prius (ZVW30) Original Toyota Accessories Part Numbers


Last updated: February 9, 2018

This is a placeholder for authentic Toyota OEM accessories part numbers, both oversea market and US domestic market. Part number list includes part description, part number and suggested retail price before tax. For exterior parts, I’ve included the base price and part numbers for the unpainted part or kit.

I’m in the process of compiling this list:

USDM OEM Toyota Prius Part numbers

  • 00016-47660 – Toyota manufactured fog light kit, COMPLETE
  • PT29A-47120 – Lower door moldings, CHROME
  • PT29A-47100 –  Lower door moldings, SATIN SILVER
  • PT413-47120 – Persona Badge
  • PT398-47090 – VIP RS3200+ security system
  • PT398-47110 – Remote engine start
  • PT922-47110 – Illuminated door sills set, set of  4
  • PT92247100RL –  Illuminated door sill, rear left
  • PT92247100RR – Illuminated door sill, rear right

JDM OEM Toyota ZVW30 Prius Part numbers

Safety

Electronics

  • 08526-47040 – Welcome light (driver and passenger side)
    01-p01
  • 08971-75021-B0 – Plasma cluster with LED lamp
    23-p01
  • 08645-47040 – Auto-retractable mirror controller kit (08645-47020 for 2010-2011 Prius)
    05-p01

    • 08503-00150 – Control module only
  • 08641-47060 – Reverse mirror controller, 2012+ (08641-47030 for 2010-2011)
    04-p01
  • 08519-47050-XX  – Fender Lamp, Front. Remote Auto-telescoping Type (XX refers to JDM color code)
    jdm-prius-zvw30-fender-lamp-08519-47050
  • 08510-47090 – Fender Lamp, manual (Design Type)
    jdm-prius-zvw30-fender-lamp-08510-47090

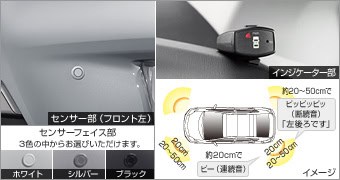

  • 08529-68070/08511-74010-XX – Corner Sensors (4 Voice Sensors); (XX refers to color: A0 White, B1 Gray, C0 Black)
    jdm-prius-zvw30-corner-sensors
  • 08529-47140/08511-74030-XX – Corner Sensors (Front left and right); (XX refers to JDM color code)
    jdm-prius-zvw30-corner-sensors-08511-74030
  • 08529-47140/08511-74030-XX – Corner Sensors (Rear left and right); (XX refers to JDM color code)
    jdm-prius-zvw30-rear-corner-sensors-08529-4714008511

Performance

Interior

  • Toyota Original Accessories
    • 08527-47040 – Interior illumination kit (2-mode type)
      08527-47040
    • 08527-47050/08867-00230 – Door handle and pocket illumination kit (front)
      08527-47050/08867-00230
    • 08471-47060-XX – Front console lid (replace XX with: C0 for black, G0 for aqua)
      t-1prp042
    • 08213-47060 – Long luggage mat
      26-p01
    • 08213-47135 – Side deck guards
    • 21-p01
    • 08193-470XX – Leather Smart Key case (replace XX with: 50 for black, 60 for brown)
      30-p01
    • 08480-47050-XX – Clean box EX (replace XX with: C0 for black, G0 for aqua)
      33-p01
    • 08471-00050-XX – Rear multi-box (replace XX with: C0 for black, G0 for aqua)
      tozvw30020
    • 08471-47050 – Console tray
      tozvw30021
  • Miscellaneous Interior Parts
    • 69206-33111-C1 – Chrome door handles, interior (driver side)
    • 69206-33121-C1 – Chrome door handles, interior (passenger side)
    • 84870-28040 – Mirror control switch assembly with power folding button and illuminated “MIRROR” control pad (JDM)
    • 84162-28010 – LED Beam push button switch (JDM)
      • 90980-12366 – 5-pin female connector

Exterior

  • Toyota Original Accessories
    • 08611-47030 – Side window visors
      23-p01
    • 08231-47020 – “PRIUS” side decal
      20-p01
    • 08475-47030 – Rear bumper step guard
      t-2pri019
    • 08522-47010 – Premium horn set
      08522-47010]
    • 08265-47020 – Door edge protector (stainless steel)
      24-p01
    • 08424-47020-XX – Headlamp “eyelid” garnish (XX refers to JDM color code)
      06-p01
    • 08150-47050-XX – Color-matched rear trunk spoiler (XX refers to JDM color code)
  • Miscellaneous Exterior Accessories
    • 81185-47411 – ZVW35 PHV Prius head lamp, LH
    • 81145-47411 – ZVW35 PHV Prius head lamp, RH
    • 81185-47340 – JDM ZVW30 LED head lamp, LH
    • 81145-47340 – JDM ZVW30 LED head lamp, RH
    • 74289-28010 – Japan Hybrid Synergy Drive emblem (JDM)
    • 67866-20021 – Center pillar upper-end weatherstrip (left)
    • 67865-20021 – Center pillar upper-end weatherstrip (right)
    • 67858-40010 – Rear door panel protector (left)
    • 67857-40010 – Rear door panel protector (right)
    • 53184-20110 – Headlamp cover seal (left)
    • 53183-20190 – Headlamp cover seal (right)
    • 86760-30191-XX – Shark-fin antenna assembly (XX refers to JDM color code)
  • Elegant Package Chrome Plated Garnishes
    Toyota Original Accessory: Elegant Package

    • 08423-47030 – 2012+ 3rd gen Chrome-plated grille garnish
    • 52701-47010 – 2012+ 3rd gen Chrome-plated grille garnish for Plug-in Prius (same as 08423-47030, but with 3 bumper reinforcement tabs)
      08423-47030

      • 08423-47010 – 2010-2011 3rd gen Chrome-plated grille garnish
    • 08417-47010 – 2012+ 3rd gen Chrome plated bumper garnish
      08417-47010]
    • 08409-47010 – Chrome-plated rear garnish
      08409-47010]
    • 08475-47050 – Chrome-plated rear bumper garnish
      17-p01
    • 08266-47030 – Chrome-plated side garnish
      13-p01
    • 08165-47010 – Silver side window molding
      16-p01
  • Sports Package
    Toyota Original Accessory: Sports Package

    • 08154-47050-XX – Front aero lip spoiler (XX refers to JDM color code)
      03-p01
    • 08158-47040-XX – Rear aero lip spoiler (XX refers to JDM color code)
      05-p01
    • 08150-47030-XX – Side rockers (XX refers to JDM color code)
      04-p01
  • Door Mirror Accessories
    • 08643-74010 – Rain clearing hydrophilic blue mirror glass
      22-p01
    • 08409-47060 – Door mirror cover (carbon fiber style)
      08-p01
    • 08409-47040 – Door mirror cover (chrome plated)
      08409-47040
  • LED Fog Lamp & Daytime Running Lamp
    • 08590-47070 –  LED fog lamp & daytime running lamp kit
      10-p01

      • 08591-00870 – LED fog lamp ASSY RH
      • 08591-00880 – LED fog lamp ASSY LH
      • 08595-00E90 – DRL Switch

JDM TRD Toyota ZVW30 Prius Part numbers

  • Sportivo Ver.
    TRD Sportivo Ver.

    • MS341-47003-XX – 2012+ Front lip spoiler (37,000¥)
    • MS341-47001-XX – 2010-2011 3rd gen Front lip spoiler (XX refers to JDM color code) (29,400¥)
    • MS313-47001-XX – Rear lip spoiler (XX refers to JDM color code) (38,850¥)
    • MS342-47001-XX – Decklid trunk spoiler (XX refers to JDM color code) (32,550¥)
    • MS403-47001 – LED daytime running light kit, fits 2012+ front lip spoiler only (42,000¥)
    • MS371-47000 – Carbon fiber pillar garnish kit
  • Performance
    • MS153-47001 – Toyota Racing Development muffler (56,000¥)
  • Suspension
    • MS300-47001 – Front Center Brace set (57,000¥)
    • MS225-47001 – TRD Blue brake pad set (12,000¥)
    • MS260-47003 – TRD Sportivo, front and rear shock absorber set (52,000¥)
    • MS250-47003 – TRD Sportivo, front and rear coil spring set (43,000¥)
  • Wheels
    • MS213-00031 – TRD 17″ TF4 aluminum wheel (33,600¥)
      • MS214-47009 – TRD 17″ TF4 aluminum wheel w/tire set (51,450¥)
    • MS214-47010 – TRD 16″ SP4 aluminum wheel w/tire set (36,750¥)
    • MS214-47011 – TRD 16″ SP5 aluminum wheel w/tire set (36,750¥)
    • MS214-47008 – TRD 17″ SP6 aluminum wheel w/tire set (38,850¥)
  • Miscellaneous
    • MS422-00002 – TRD red push button start (14,700¥)
    • MS360-00001 – TRD fuel cap (3,990¥)
    • MS112-00001 – TRD oil cap, resin screw type (6,825¥)
    • 12180-SP002 – TRD oil cap, silver screw type (10,290¥)

JDM Toyota Prius G Sports Parts and Accessories

  • Interior
    • 33504-W9005-B0 – Shift knob sub-assembly
      • zvw30-prius-g-shift-knob-33504-W9005-B0
  • Exterior
    • 52119-47620-D0(3R3) – Front bumper (57,700¥)
    • 52719-47010-D0(3R3) – Front bumper molding cover (1,100¥)
    • 52127-47051-D0(3R3) – Front bumper hole cover
    • 53102-47130 – Front bumper lower sub-assembly grill (5,700¥)
    • 81551-47240 – RH rear tail lamp lens with rear fog lamp
      • zvw30 Prius G's tail lamp, right, with rear foglight, 81551-47240
    • 81561-47240 – LH rear tail lamp lens
      • ZVW30 Prius G's tail lamp, left 81561-47240
    • 8121A-WY010 – RH & LH; LED illumination lamp x2 (6,200¥)
    • 8121B-47010 – RH LED illumination lamp bracket (1,850¥)
    • 8122B-47010 – LH LED illumination lamp bracket (1,850¥)
    • 81110-47571 – G’s spec HID head light, RH (81,165¥)
    • 81150-47571 – G’s spec HID head light, LH (81,165¥)
    • 52751-47010 – Rear bumper garnish
    • 76892-47030 – Rear underbody spoiler (left)
    • 76892-47040 – Rear underbody spoiler (right)
  • Electronics
    • 08529-68070 – 4 Corner Sensor indicator (indicator kit only)
    • 08529-47140 – Corner Sensor indicator, Front left and right/Rear left and right  (indicator kit only)
  • Wheels
    • 42603-WY020 – G Sports center caps
  • Suspension
    • 51403-WY020 – Front member brace
    • 57533-WY010 – Front floor brace
    • 57543-WY010 – Rear suspension brace
    • 53605-WY010 – Rear suspension brace sub-assembly

Prius PLUS Part numbers

  • PT413-47110 – PLUS Badge
  • PTR11-47010 – PLUS rear sway bar kit
  • PTR11-47011 – Rear sway bar replacement bushings & brackets
  • PTR11-47012 – Rear sway bar endlinks replacement
  • PTR07-47100 – Sport lowering springs
  • PT926-47121-10 – Carpet floor mats with PLUS embroidery
  • PTR20-47010 – PLUS 17″ 5-split spoke alloy wheels
  • PTR938-47120 – PLUS 7-piece ground effects kit (2012+ 3rd gen model)
    • PT938-47120-11, Winter Gray Pearl (color code 8V1)
    • PT938-47120-21, Blizzard White (color code 070)
    • PT938-47120-01, Classic Silver (color code 1F7)
    • PT938-47120-02, Black (color code 202)

Miscellaneous Prius part numbers, OEM Toyota/Lexus

These are miscellaneous USDM OEM Toyota or Lexus parts. They fit the Prius out of the box or with minor modification.

  • Inverter and radiator reservoir cover assembly set
    • 16615-28010 – Radiator reservoir cover
    • 82821-76010 – Connector cover
    • 82715-76040 – Wiring harness bracket
    • G9140-76010 – Inverter cover assembly
    • 90467-07211 – Clip (bumper grille)
  • Miscellaneous parts and accessories
    • 81135-24160 – Toyota HID headlamp cover, back
    • 85967-52010 – Toyota / Lexus Denso HID ballast D4x
    • 85967-47020 – Koito LED ballast
    • 85967-47010 – Koito HID Ballast
    • 69410-33020 – Door plate assembly
    • 69415-33010 – Door lock cover
    • 81230-48030 – Courtesy lamp assembly (red)
    • 69741-50020-C0 – Chrome door lock control knob (front right)
    • 69742-50020-C0 – Chrome door lock control knob (front left)
    • 57501-12020 – Brace sub assembly
    • 52255-76010 – Front suspension member brace
    • 42603-12730 – Toyota wheel center cap
    • 52016-47040 – Rear bumper arm sub-assembly
    • 58815-52050 – Console box carpet

13 thoughts on “Prius (ZVW30) Original Toyota Accessories Part Numbers”

  • milqueto says:
    March 20, 2020 at 1:23 PM

    Greeting and salutes. I have a 2013 CT200h. Looking to upgrade the halogen headlamps to the OEM LEDs. In trying to do some research, I’m finding some units on ebay that have a different number for the computer light controller, or ballast. Some have 85967-47010 and others have 85967-47020. Some used units don’t have the controller, meaning they are cheaper, and I can find the controller separate. But which one to get? My initial guess would be the 47020 listed above as it lists it as the LED ballast. Any thoughts would be appreciated, and sorry for being a little long winded. Thank you.

    Reply
  • Magnus says:
    January 9, 2018 at 5:48 AM

    Anyone who knows where i can buy the eyelid garnish?

    Reply
    • 5teve-0 says:
      February 8, 2018 at 2:46 PM

      Try Rakuten or Yahoo Auctions Japan.

      Reply
  • Sampath Dharmasena says:
    October 6, 2017 at 12:22 AM

    Hi Im in a need of “08519-47050-XX – Fender Lamp, Front. Remote Auto-telescoping Type (XX refers to JDM color code) ” actually power antena plus the knob that attached to the bumper how can I find it please advise.

    Reply
  • Nazeer Syed says:
    July 18, 2017 at 8:12 PM

    And Steve one more thing.will usdm prius engine splash shield fit to Jdm prius?thanks.

    Reply
  • Nazeer Syed says:
    July 18, 2017 at 8:06 PM

    Hi Steve.can you help me with prius Jdm 2013 part No.55878-47030. And part No.64721.found them in glove compartment.thanks

    Reply
    • 5teve-0 says:
      July 27, 2017 at 1:11 PM

      Not sure what you’re asking, Nazeer?

      Reply
  • Anonymous says:
    May 10, 2017 at 1:20 PM

    Hello,
    Would you happen to know if any of the JDM TRD parts would work/install fine on a U.S. car? For ex: would the MS260-47003 – TRD Sportivo, front and rear shock absorber set be a direct swap?
    Thanks.

    Reply
    • 5teve-0 says:
      May 13, 2017 at 2:10 PM

      They should be interchangeable. Only thing to look for is items that are RHD specific, like dash components. They will not interchange.

      Reply
      • Anonymous says:
        May 16, 2017 at 8:57 AM

        So is it safe to assume there shouldn’t be anything specific to RHD vs LHD when it comes to shocks?

        Reply
        • 5teve-0 says:
          May 16, 2017 at 7:46 PM

          Yup, suspension parts, wheels, chassis, etc.

          Reply
  • GTP says:
    April 28, 2017 at 11:44 PM

    “PTR11-47011 – Rear sway bar replacement bushings & brackets”

    I think the correct part# is PTR11-47010. and the “PTR11-47011” is for the hardware only

    Or you just forgot to add PTR11-47010

    🙂

    Reply
    • 5teve-0 says:
      May 2, 2017 at 10:09 AM

      Added, thanks. I haven’t touched this page in ages!

      Reply

Leave a Reply Cancel reply

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Search Balancing Act


Categories


Share


Recent Posts

  • DIY: How to Install Side Window Visors On a 3rd Gen Hyundai Tucson
  • Slurping Aunt Dotty Oysters From Island Creek Oysters
  • Mail Order Oysters From Island Creek Oysters
  • DIY: How to Install Interior LED Lighting Kit on a 3rd Generation Hyundai Tucson
  • The Journey to Restore Our Front Yard
  • Newest Member of Our Family, New Blog
  • Quick Front Yard Update
  • Lamin-X Applied onto 2019 Hyundai Tucson Foglights
  • Waxing the Tucson
  • Review: Get Sunday Weed Control

Tag Cloud

3rd gen 2010 2011 2012 2013 2014 Acura acura rsx apple bbq Cal Poly Pomona dc5 diy diy guide Fluval fuel economy guide hid how to hyundai ikamand installation installation guide jdm kamado kamado joe LED maintenance mpg Nintendo nursery OEM Prius Prius PLUS Performance review road trip RSX super mario Toyota travel trd turtles yakima zvw30 zvw35

Pages

  • 3rd Gen Tucson Part Numbers
  • About this Site :o
  • Contact
  • Prius (ZVW30) Original Toyota Accessories Part Numbers

Categories

  • Automobiles
    • 2005 Acura RSX Type S
    • 2012 Toyota Prius c Four
      • DIY Maintenance Guides
    • 2012 ZVW30 Toyota Prius Four
      • DIY Maintenance Guides
    • 2019 Hyundai Tucson Limited
  • Baby Stuff
  • Briefings
  • I Love Technology, Always and 4ever
  • Product Reviews
    • Fresh Oyster Reviews
  • Travel and the Great Outdoors
    • Botanical Walks
    • Cooking on the Kamado Joe
    • Food 4 Thought
    • Outside of California
    • Photo Venture
    • Road Trips
  • Turtle Log
  • Uncategorized
  • Video Gaming

Copyright © 2008~2020 Balancing Act

Theme created by PWT. Powered by WordPress.org
